Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment. The unit supports stream performances and presentations on PC through the USB-C port. User can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choices
CHROMA KEY LUMA KEY CHROMA: Enable the Chroma Key LUMA: Enable the Chroma Key PIP1/PIP2: Enable two group of Picture in Picture. Size and position can be set via Menu. LOGO: Add logo bin from USB flash disk, enable the logo overlay ON AIR: make the corresponding Chroma/Luma/PIP/Logo on air
MULTIVIEW The switcher has two HDMI outputs (PGM/Multiview). The two HDMI ports are both the AUX out that user can define it as output of HDMI 1/ HDMI 2/ HDMI 3/ HDMI 4/ PGM/ Clean PGM/ PVW/ Color Bar/ Multiview (Refers to Part 6). Connecting the HDMI Multiview out to an additional monitor, user will get the multiview image. In the Multiview there are windows of PVW, PGM, HDMI 1, HDMI 2, HDMI 3, HDMI4 and Status/Menu page. See below image

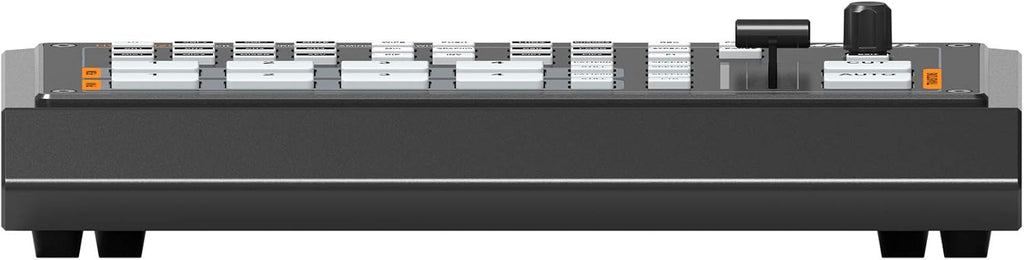

Model number : HVS0402U
MICRO 4 CHANNEL HDMI LIVE STREAMING VIDEO SWITCHER
4 channel auto-detected HDMI inputs
1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
AUX output configurable and assignable
USB-C for capturing and streaming on PC
Clearly visible multiview & status page
Upstream key: Luma key, Chroma key, PIP×2/ POP
Downstream key and LOGO overlay
T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
LAN port for PC software remote control
FTB/ MUTE/ STILL/ GPIO for tally
customer configuration import and export

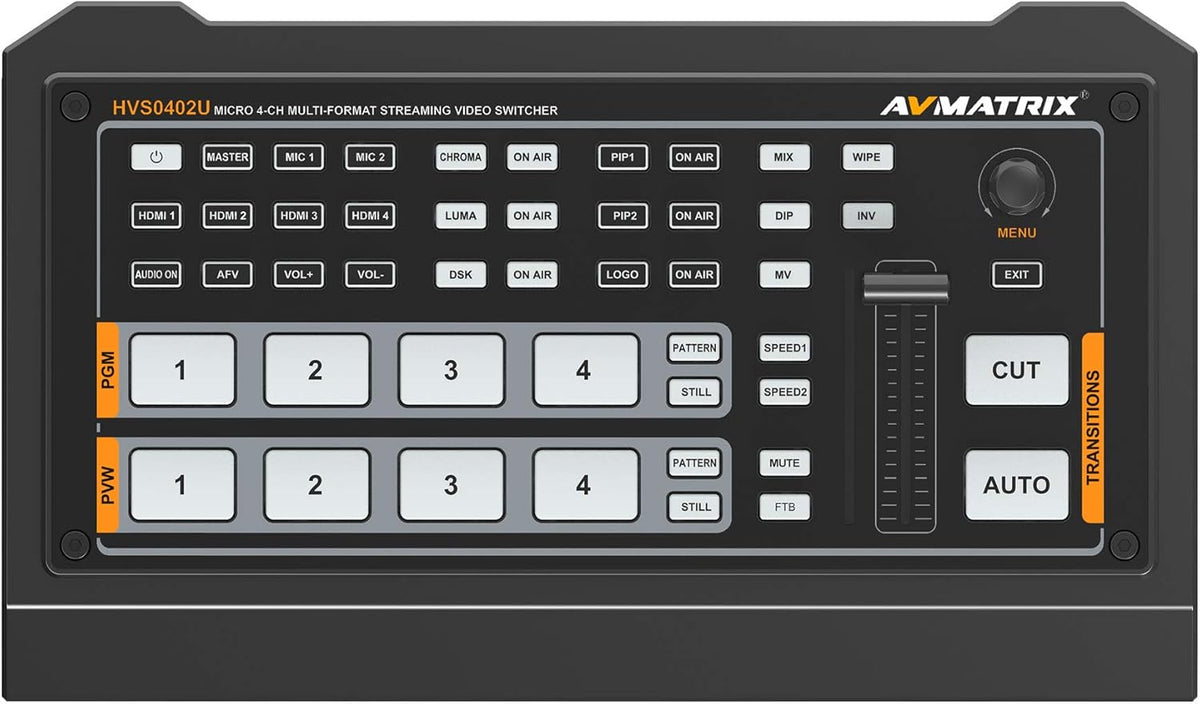

Overview HVS0402U is a 4-channel HDMI multi-format video Switcher with compact metal case design.
It supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects,
Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color generator, etc. Inputs support multi-format, PGM output can be scaled,compatible with a variety of equipment.
The unit supports stream performances and presentations on PC through the USB-C port. User can also customize different settings and import or export the configuration quickly for various scenarios.
Video In:
HDMI type-A x 4
Video Out:
HDMI type-A PGM x 1
USB 2.0 type-C x 1(Streaming on PC)
Assignale HDMI 1-4, PGM,Clean PGM. PVW,Color bar, Multiview
Audio In: MIC/Line x2(3.5mm stereo audio)
PC Control Port: LAN x 1
Media Library:DB-15 x 1
Tally Port:DB-15 x 1
Power In: DC 12V x 1
